Fire Extinguishers

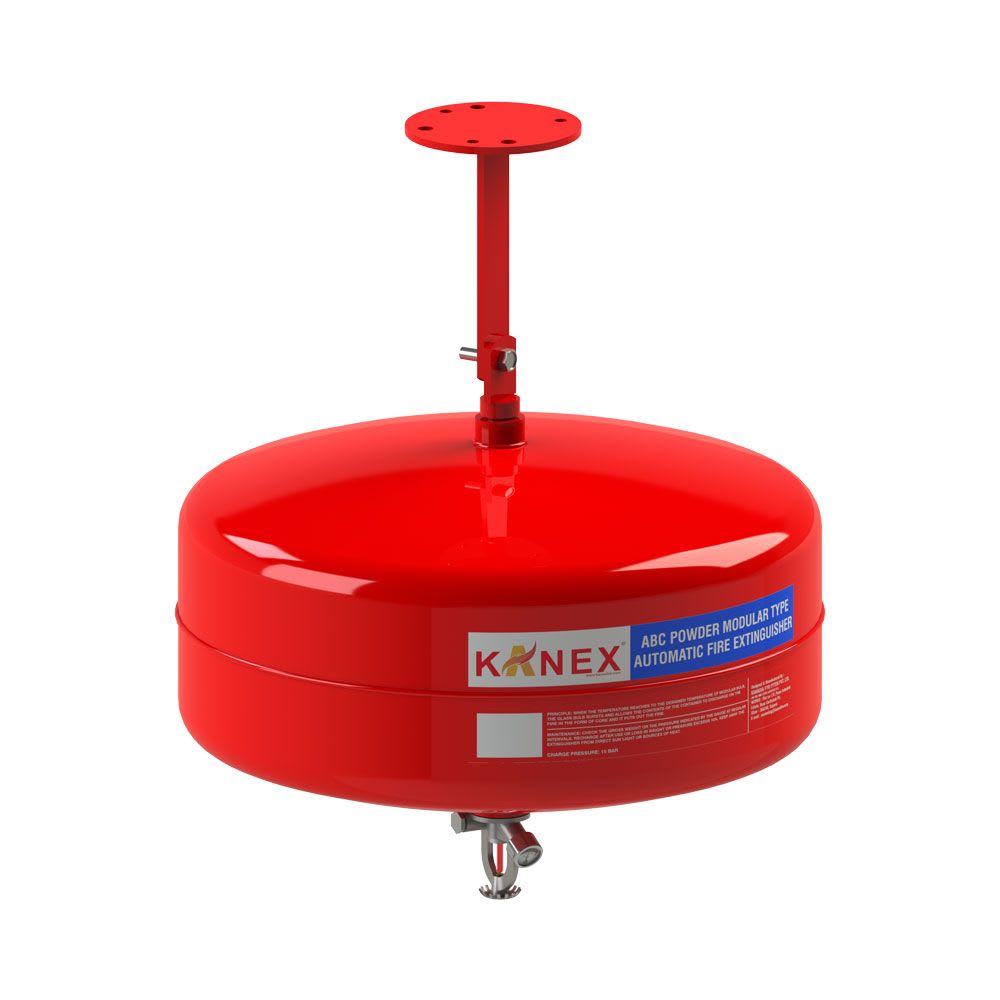

15 KG Automatic Modular Fire Extinguisher (MAP 90 Based)
KanexKey features
- High quality MAP 90% Powder.
- Unique gauge testing system (UGTS) mechanism.
- Brass chrome plated discharge sprinkler.
- Tough Exterior and interior Coating with Pure Polyester (PP) powder.
- Automatic Detection and Suppression in a single unit.
- Extinguisher shells are 100% factory hydro tested to excess of 35 bar.
- Expelling Agent UHP (Ultra High Pure) Grade Nitrogen.
- Anti-corrosive Phosphate treated modules.
- Provides securities in case of emergencies and power failure without power backup.
- Easy as well more economical to maintain, service and re chargeable.
- Bar Code labeling for better traceability.
Product details
Applications
- Offices & Banks
- Welding Benches
- Tranformers
- Paint And Varish Booths
- Oil Fill-In Stations
- Fuel And Liquid Storage
- Automobile Garages
Specifications
| Model | KMPRQ-15-90 |
|---|---|
| Capacity | 15 kg |
| Design | Ceiling Mounted |
| Height (Approx.) | 425 mm |
| Diameter (Approx.) | 400±10 mm |
| Average Discharge Time | 15-20 Sec |
| Average Discharge | 99% |
| Operating Temperature | -30 °C to +55 °C |
| Service/Max. service/Test Pressure | 15 / 35 bar |
| Expelling Agent | Nitrogen (UHP Grade) |
| Full Weight (Approx.) | 21.4kg |
| Empty Weight (Approx.) | 6.4 kg |
| Shipping Weight (Approx.) | 22 kg |
| Mounting Bracket | Ceiling mounting stand |
| Approvals | Any Government approved Lab |
| Volume Protection | 15 m 3 |
| Area Protection | 5-6 m 2 |
| Hanging Height Above Risk | 2.5 m |
Request a quote for 15 KG Automatic Modular Fire Extinguisher (MAP 90 Based)
Share your quantity and site details — we'll respond with pricing and lead time.
