Fire Hydrant Systems

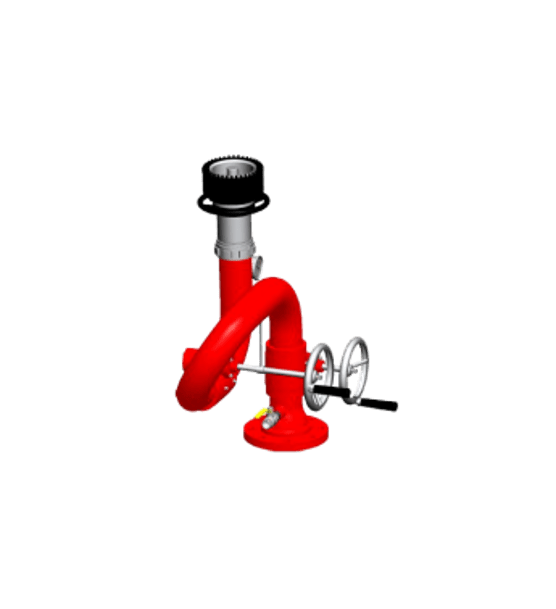

Water Monitors (Swivel Type Carbon Steel) – 7575 LPM
AAAGAAAG monitors are durable units suitable for Industrial fire protection. It can be used for fixed installation as well as for trailer mounting. These monitors have a flow rate of 7575 LPM at 7 Bar.
Specifications
| Model | AAAG M 150G |
|---|---|
| Material | Carbon Steel |
| Maximum Operating Pressure | 14 Bar (203 psi) |
| Flow rate | 7575 LPM @ 7Bar |
| Throw Range | 64 Meters |
| Inlet Flange | 150 NB (6”) Raised Flange ANSI B 16.5 150 # |
| Monitor Outlet | 150 NB (6”) Water way , Jet Nozzle Optional : Jet - Spray Nozzle |
| Monitor Movement | Vertical Movement – Manual Gear Operated Hand Wheel Horizontal Movement – Manual Gear Operated Hand Wheel |
| Hydrostatic Test Pressure | 25 Bar |
| Monitor Rotation | 3600 continuous |
| Monitor Elevation | +900 above horizontal -450 below horizontal |
| Finish | Red Polyurethane |
Request a quote for Water Monitors (Swivel Type Carbon Steel) – 7575 LPM
Share your quantity and site details — we'll respond with pricing and lead time.
