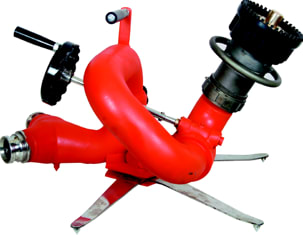

Monitors (Portable Monitors) – 1880 LPM
AAAGAAAG portable monitors are suitable for fire department as well as for supplementary fire fighting applications. It has several design features like easy operation, minimum maintenance and resistance to corrosive environment. These monitors have a flow rate of 1880 LPM at 7 Bar.
Specifications
| Model | AAAG Assault 63 |
|---|---|
| Material | Stainless Steel Optional : Aluminium |
| Maximum Operating Pressure | 14 Bar (203 psi) |
| Flow rate | 1880 LPM @ 7Bar |
| Throw Range | 48 Meters |
| Inlet | 63 NB (2 ½”) X 2 Female BS Instantaneous Coupling Optional : 63 NB (2 ½ ”) Male |
| Monitor Weight | 18 Kgs |
| Monitor Movement | Vertical Movement – Manual Gear Operated Hand Wheel Horizontal Movement – Manual Swivel Operation With Lock |
| Hydrostatic Test Pressure | 25 Bar |
| Monitor Rotation | 3300 continuous |
| Monitor Elevation | +900 above horizontal if deck mounted -650 below horizontal if deck mounted |
| Finish | Red Polyurethane |
Request a quote for Monitors (Portable Monitors) – 1880 LPM
Share your quantity and site details — we'll respond with pricing and lead time.
