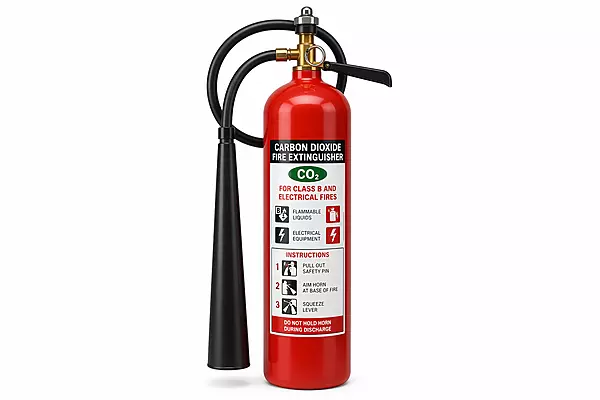

CO2 TYPE FIRE EXTINGUISHER

Specifications

Capacity

2 kg / 3 kg / 4.5 kg / 9 kg

Discharge Time

8–15 seconds

Range

Approx. 2–3 meters

Working Pressure

~100–150 bar

Operating Temperature

-30°C to +60°C

Fire Rating

Typically 8B to 34B

Key features

• CO₂ Type Fire Extinguisher (Carbon Dioxide Based)
• Suitable for Class B (flammable liquids) & Electrical fires
• Uses CO₂ gas as extinguishing agent
• Leaves no residue after discharge
• Non-conductive – safe for live electrical equipment
• High-pressure discharge with horn nozzle
• Available in 2kg, 3kg, 4.5kg & 9kg (trolley type)
• Compact & easy to handle (portable models)
• Ideal for offices, server rooms, electrical panels
• ISI / BIS certified models available
• Class B fires (petrol, diesel, solvents, oils)
• Electrical fires (live equipment, panels, servers)
• It expands rapidly into gas
• Displaces oxygen around flames
• Cools the fire slightly due to cold discharge
• Electrical panels & switch rooms
• Server rooms & data centers
• Offices & commercial buildings
• Laboratories & control rooms
• Petrol pumps & workshops
• ❌ Not suitable for Class A fires (wood, paper, cloth)
• ❌ Not ideal for cooking oil fires (Class F)
• ⚠️ Use in well-ventilated areas (CO₂ displaces oxygen)
